The Virtual DOM

The Virtual DOM is a technique that React uses to optimize interacting with the browser.
The Virtual DOM is an abstraction of the HTML DOM. It is lightweight and detached from the browser-specific implementation details.
React creates a virtual DOM.
When state changes in a component it firstly runs a "diffing" algorithm, which identifies what has changed in the virtual DOM.
The second step is reconciliation, where it updates the DOM with the results of diff. Many existing frameworks, before React came on the scene, were directly manipulating the DOM on every change.

First, what is the DOM?

The DOM (Document Object Model) is a Tree representation of the page, starting from the tag, going down into every child, which are called nodes.
It's kept in the browser memory, and directly linked to what you see in a page. The DOM has an API that you can use to traverse it, access every single node, filter them, modify them.

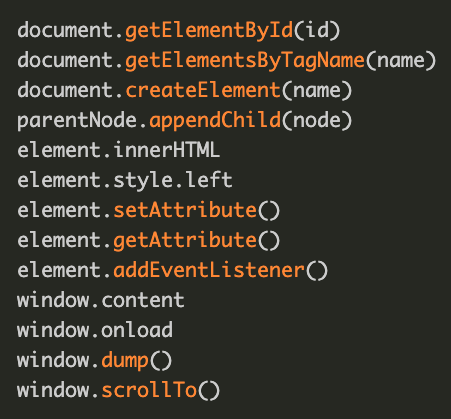

The API is the familiar syntax you have likely seen many times, if you were not using the abstract API provided by jQuery and friends:
logo
React keeps a copy of the DOM representation, for what concerns the React rendering: the Virtual DOM

The Virtual DOM Explained

Every time the DOM changes, the browser has to do two intensive operations: repaint (visual or content changes to an element that do not affect the layout and positioning relative to other elements) and reflow (recalculate the layout of a portion of the page - or the whole page layout).
React uses a Virtual DOM to help the browser use less resources when changes need to be done on a page.

When you call setState() on a Component, specifying a state different than the previous one, React marks that Component as dirty. This is key: React only updates when a Component changes the state explicitly.

What happens next is:
React updates the Virtual DOM relative to the components marked as dirty (with some additional checks, like triggering shouldComponentUpdate()) shouldComponentUpdate()) Runs the diffing algorithm to reconcile the changes Updates the real DOM

logo

logo

logo

Why is the Virtual DOM helpful: batching

The key thing is that React batches much of the changes and performs a unique update to the real DOM, by changing all the elements that need to be changed at the same time, so the repaint and reflow the browser must perform to render the changes are executed just once.
